Wing Span----86.6in/2200mm;
Wing Area----94sq.dm;
Fuselage Length----85.5in/2172mm;
Flying Weight:7300----7700g;
Radio----6Channels 6Servos;
Engine----50CC
DLE55 55cc gasoline engine

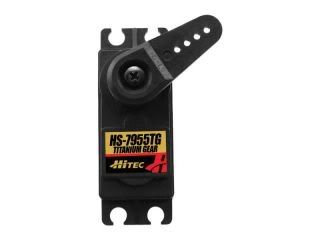

Hitec 7955TG 6 pcs
Wood propeller 23x8 1 pc free
Aluminum spinner 3.5” 1 pc free
Selling for 49,700 free shipping by ems
add BrandNew Aurora 9 2.4ghz radio with 9 channel for only
ength:84"(2150mm)with spinner,80"(2050mm)without spinner.
Wing Area: 1426 sq in(9202sq cm)
FLYING Weight: 15-16.8lbs(6800-7900g)
Features:
1. Light weight construction
2. Latest structure
3. High structual strength
4. Two pieces of removable wings
5. Super quality
6. Excellent aerobatics and 3D performance
7. Easy installation
8. Fully symmetrical aerofoil tail wing
9.Complete accessories
10. High performance hardware including: Ball linkate control system; PU
wheels;C.F.Tube; Anodized Aluminum long arms, Carbon Landing gear; safe
servos stapers;
Professional designed for 3D and precision aerobatics.Cowl with cowl ring,No exterior screws exposed ;Removable wings;
Pre mounted and painted Canopy;
Carbon Fiber accessories:
Carbon Fiber wing tube include
Carbon Fiber tail wing tube include
Carbon Fiber landing gear include
Carbon Fiber tail wheel include
New DLE55 55CC Gasoline Engine
1、Performance
5.5HP/7500rpm
Idle Speed: 1350 rpm/min.)
14.2Kg Pulling Force / 100 meters Altitude
12.5Kg Pulling Force / 1800 meters Altitude
The specification of the aircraft propeller: 22×8; 22×10;23×8;23×10;
the type of the sparking plug :NGK CM6
2、Parameter
Exhaust Amount ) :55.6cm3
diameter × stroke ) : 45mmX35mm
Ratio of compression):7.6:1
Ratio of lubricating capacity): 30:1
Weight: Main engine - 1310g Exhaust pipe - 100g
Ignition apparatus - 120g
New DLE30 30cc gasoline engine 13,500
Gas and Nitro fuelpump red/black color
http://www.hitecrcd.com/products/ser...hs-7945th.html
The HS-7945TH has been designed for applications where both high speed and high torque are needed.
The HS-7945TH is perfect for High Performance Aircraft, Cars, and Trucks as well as larger Nitro and Electric Helicopters.
Motor Type: 7.4v Wind Coreless
Bearing Type: Dual Ball Bearing
Speed (6.0V/7.4V): 0.12 / 0.10 second @ 60°
Torque oz./in. (6.0V/7.4V): 250 / 319
Torque kg./cm. (6.0V/7.4V): 18.0 / 23.0
Size in Inches: 1.57 x 0.79 x 1.50
Size in Millimeters: 39.88 x 20.07 x 38.10
Weight oz.: 2.40
Weight g.: 68
Control System: +Pulse Width Control 1500usec Neutral
Required Pulse: 4.8-6.0 Volt Peak to Peak Square Wave
Operating Voltage Range: 4.8-6.0 Volts
Operating Temperature Range: -20° to +60° C (-68°F to +140°F)
Operating Speed (4.8V): 0.19 sec/60° at no load
Operating Speed (6.0V): 0.15 sec/60° at no load
Stall Torque (4.8V): 250oz/in. (18kg.cm)
Stall Torque (6.0V): 333oz/in. (24kg.cm)
Operating Angle: 45 Deg. one side pulse traveling 400usec
360 Modifiable: Yes
Direction: Clockwise/Pulse Traveling 1500 to 1900usec
Idle Current Drain (4.8V): 9mA at stop
Idle Current Drain (6.0V): 9mA at stop
Current Drain (4.8V): 220mA/idle and 3.4 amps at lock/stall
Current Drain (6.0V): 300mA/idle and 4.2 amps at lock/stall
Dead Band Width: 1usec
Motor Type: Coreless Carbon Brush
Potentiometer Drive: 6 Slider Indirect Drive
Bearing Type: Dual Ball Bearing MR106
Gear Type: Titanium Gears
Connector Wire Length: 7" (178mm)
Dimensions: 1.57" x 0.78"x 1.45" (40 x 20 x 37mm)
Weight: 2.29oz (65g)
Hitec 7950th avail 3,500
All ITEM ARE BRANDNEW
www.alphamodel.ucoz.com
Hitec HS7985 3,000 free shipping 2 pcs avail
Control System: +Pulse Width Control 1500usec Neutral
Required Pulse: 4.8-6.0 Volt Peak to Peak Square Wave
Operating Voltage Range: 4.8-6.0 Volts
Operating Temperature Range: -20° to +60° C (-4°F to +140°F)
Operating Speed (4.8V): 0.16sec/60° at no load
Operating Speed (6.0V): 0.13sec/60° at no load
Stall Torque (4.8V): 144oz/in. (10.4kg.cm)
Stall Torque (6.0V): 172oz/in. (12.4kg.cm)
Operating Angle: 45 Deg. one side pulse traveling 400usec
360 Modifiable: Yes
Direction: Clockwise/Pulse Traveling 1500 to 1900usec
Idle Current Drain (4.8V): 3mA at stop
Idle Current Drain (6.0V): 3mA at stop
Current Drain (4.8V): 200mA/idle and 2.0 amps at lock/stall
Current Drain (6.0V): 240mA/idle and 3.0 amps at lock/stall
Dead Band Width: 2usec
Motor Type: Coreless Carbon Brush
Potentiometer Drive: 6 Slider Indirect Drive
Bearing Type: Dual Ball Bearing MR106
Gear Type: 3 Metal, 1 Metal Karbonite Gear
Connector Wire Length: 7" (178mm)
Dimensions: 1.57" x 0.78"x 1.45" (40 x 20 x 37mm)
Weight: 2.18oz (62g)
